Modern Design White Waterproof Geosynthetic Clay Liner GCL for Landfill and Ponds

Ask Lasest Price
Brand Name :	TAIAN HONGYUAN
Model Number :	GCL-3
Supply Ability :	20000 Square Meter/Square Meters per Day
Price :	$1.98/square meters >=10000 square meters

Add to Cart

Product Details
Company Profile

Modern Design White Waterproof Geosynthetic Clay Liner GCL for Landfill and Ponds

Products Description

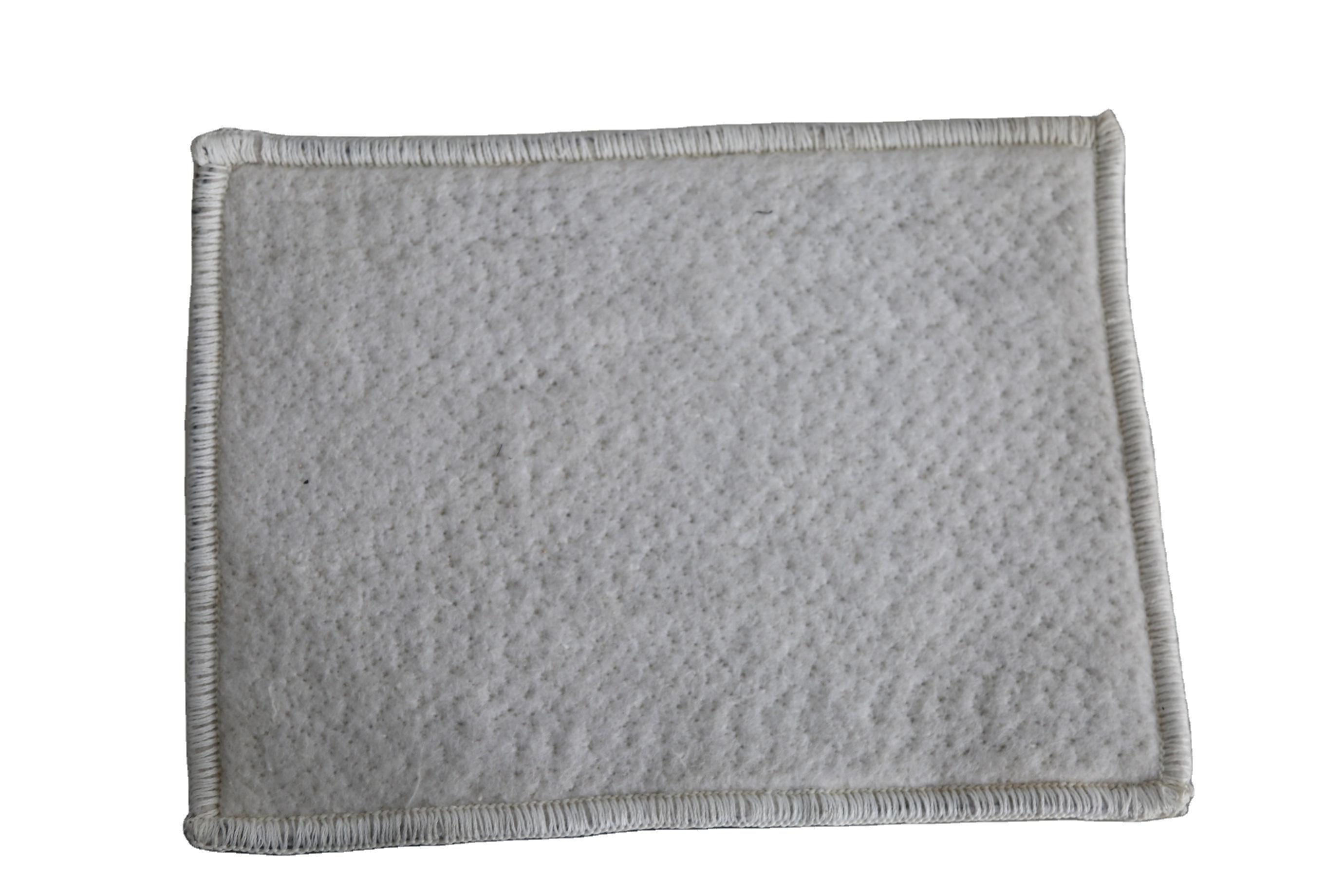

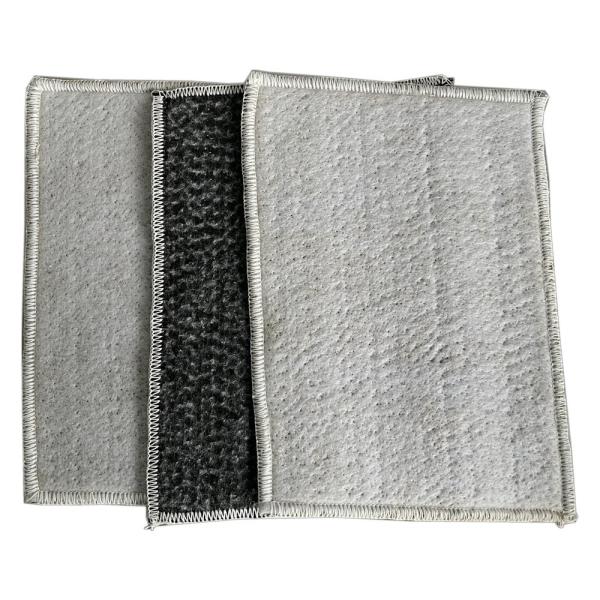

GCL

As a new type of environmentally friendly and ecological composite anti-seepage material, Bentonite Waterproof Blanket has been widely used in civil engineering such as water conservancy, environmental protection, transportation, railway, civil aviation and other civil engineering with its unique anti-leakage performance. Foundation treatment and capping of waste landfills, seepage prevention of artificial lakes, reservoirs, channels, rivers, roof gardens, seepage prevention of famous underground structures such as basements, subways, tunnels, and underground passages, etc.

Modern Design White Waterproof Geosynthetic Clay Liner GCL for Landfill and Ponds

Product Paramenters

Items	Technical index
Items		GCL-NP	GCL-OF	GCL-AH
Mass area ratio (g/m2)	≥4000	≥4000	≥4000
Swelling coefficient of Bentonite(ml/2g)	≥24	≥24	≥24
Ethylene blue adsorbed(g/100g)	≥30	≥30	≥30
Tensile strength(N/100mm)	≥600	≥650	≥600
Elongation at maximum load (%)	≥10	≥10	≥8
Peel strength (N/100mm)	≥40	≥40	≥40
Filtration (ml)	≤18	≤18	≤18
Durability of Bentonite (ml/2g)	≥20	≥20	≥20

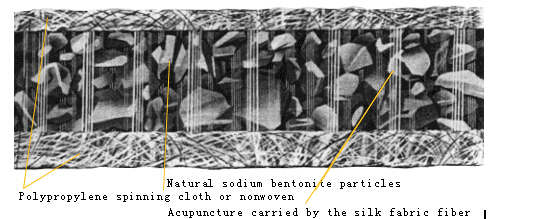

Geosynthetic clay liners (GCLs) are an innovative waterproofing solution that have gained popularity in recent years. They are made up of a layer of bentonite clay, sandwiched between two geotextile layers, creating a barrier that is effective against water and other liquids. GCLs offer several benefits, including:

Versatility: GCLs can be used in a wide range of applications, from landfill liners to transportation infrastructure projects.

Environmental friendliness: GCLs are made up of natural materials and have a low environmental impact, making them an eco-friendly option.

Cost-effective: GCLs are typically more affordable than traditional waterproofing solutions, such as concrete and asphalt.

Easy installation: GCLs can be installed quickly and easily, reducing construction time and labor costs.

High durability: GCLs are resistant to UV rays, chemicals, and punctures, making them a reliable and long-lasting waterproofing solution.

Overall, geosynthetic clay liners offer an effective, versatile, and cost-effective waterproofing solution, making them a popular choice for construction and infrastructure projects worldwide..

ADVANCED PRODUCTION LINES

The company has the most advanced production equipment, with a complete production process, can produce 20000m2 GCL per day, product quality compliance with international standards.

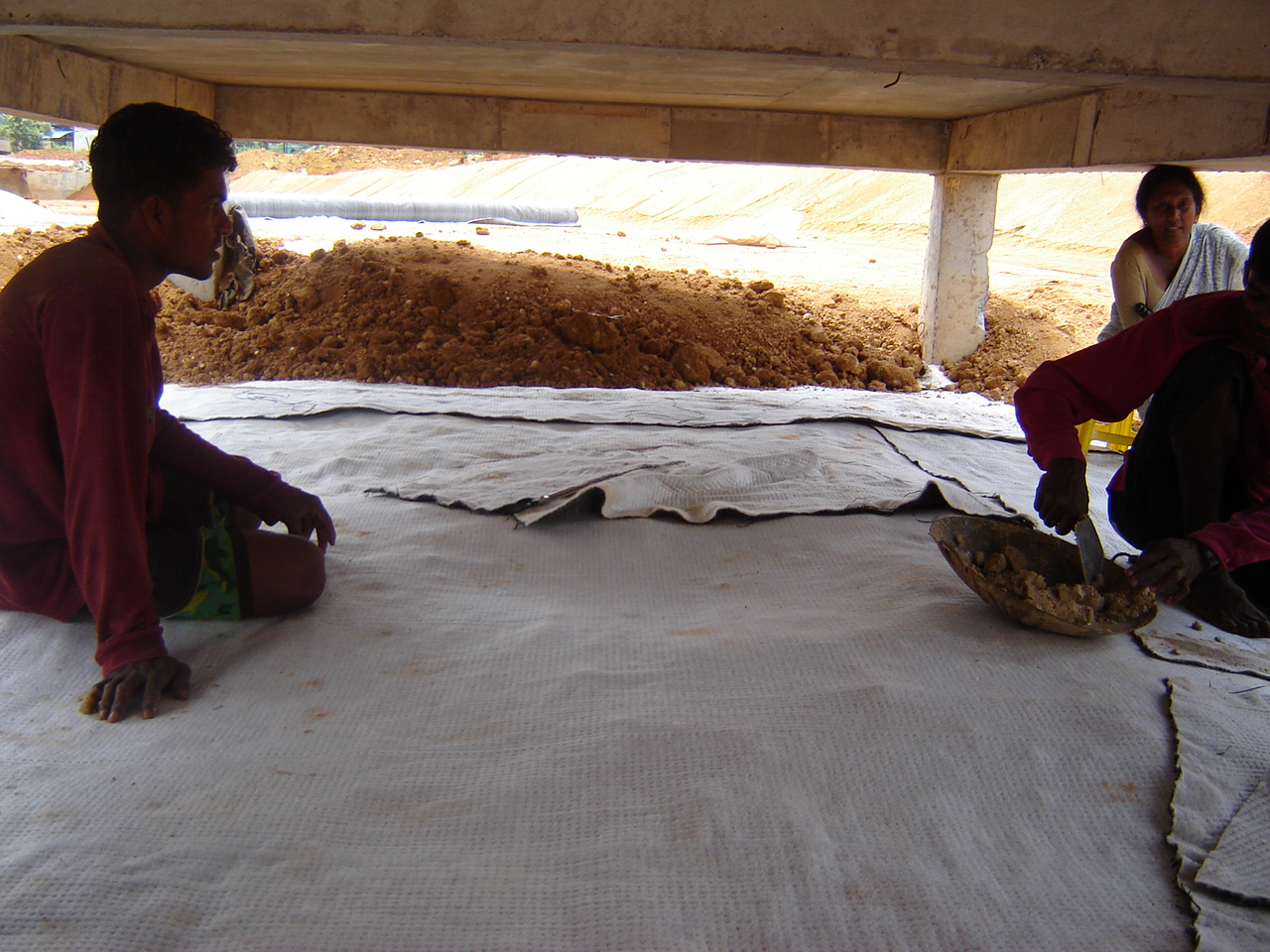

Construction drawing of Sri Lanka Water Park

Construction drawing of the artificial lake

Landfill construction drawing

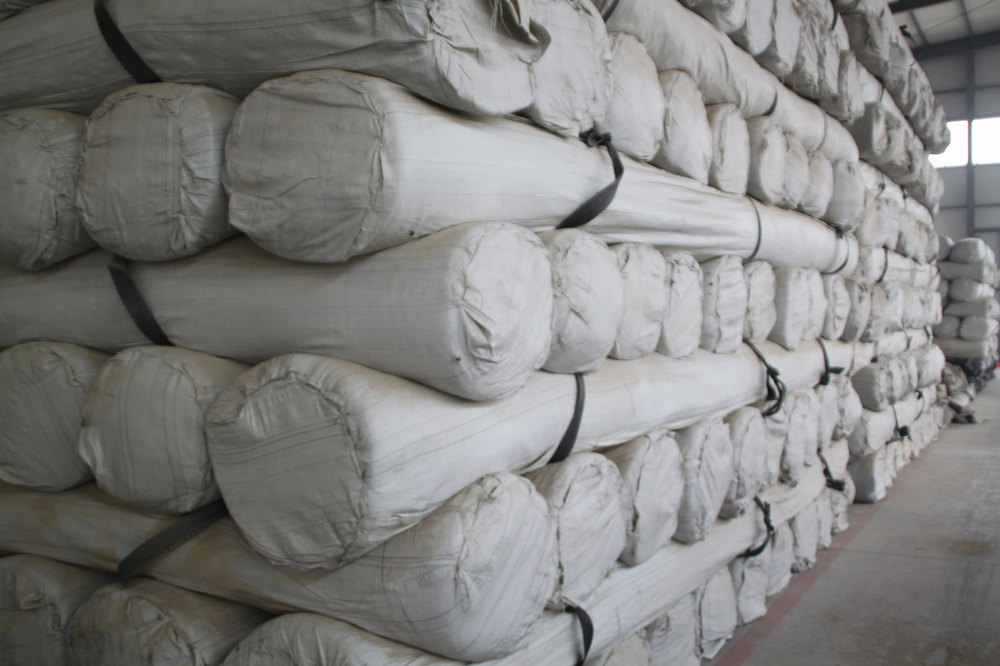

Product packaging

FAQ

1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid
East(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
bentonite mat,swellable mat,geocell,geomembrane,geotextile

4. why should you buy from us not from other suppliers?
Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
geotextile, GCL(Geosynthetic clay liners) and geotechnical materials. Our products have been exported to many countries, and are

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
