    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller

    Ask Lasest Price
    Brand Name : TAIAN HONGYUAN
    Model Number : 8MM-60MM
    Supply Ability : 20000 Square Meter/Square Meters per Day
    Price : $2.34/square meters 1000-9999 square meters
    • Product Details
    • Company Profile

    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller

    Products Description
    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller
    Drainage Board
    HDPE drainage board, also known as cavity drain board, drainage membrane, dimple board for drainage, is widely used in many civil
    projects, with good performance of waterproofing on the surface of roofs, basement and retaining walls.

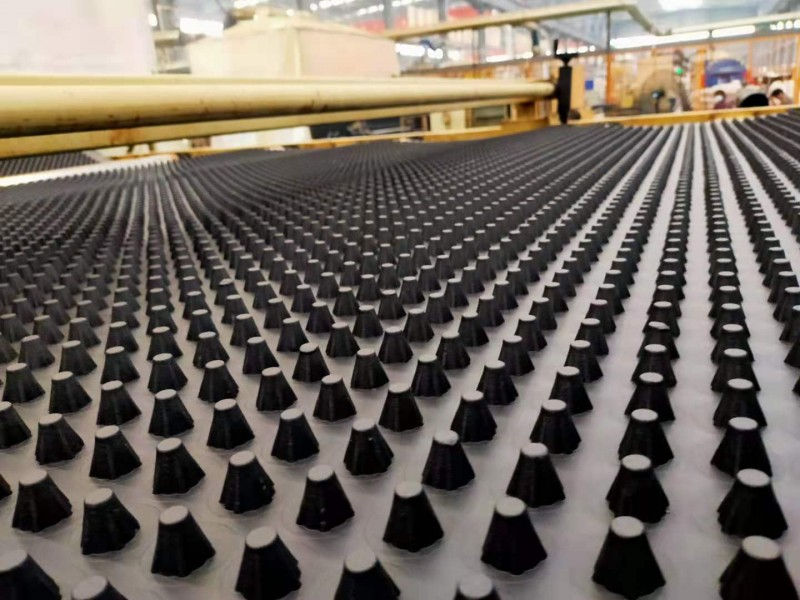

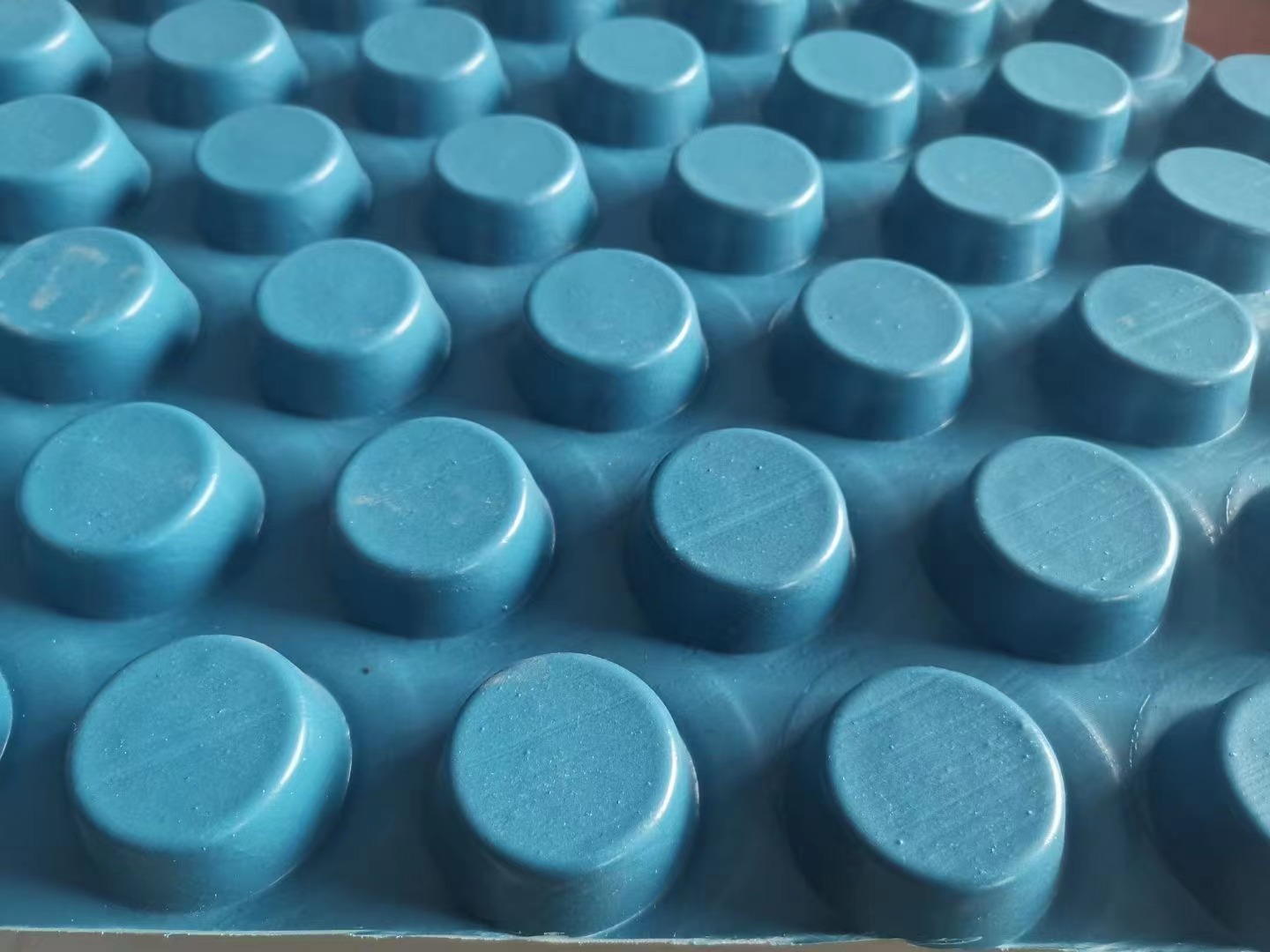

    Drainage Board with holes is made from high density polyethylene plastic and it is a kind of geomembrane with dimples on the
    surface. The dimples can be in cylinder and semi cone shape. It could also be coated by non woven geotextile. The liquid and gas
    can go through freely between dimples.
    The dimple drainage board can be thickness in 08 mm, 10 mm, 20 mm, 25 mm, 30 mm, 40 mm, 50 mm and 60 mm.
    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller
    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller
    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller
    Product Paramenters
    Item
    Item
    Index
    Tension at 10% Elongation (N/100mm) ≥
    Tension at 10% Elongation (N/100mm) ≥
    350
    Max.Tension (N/100mm) ≥
    Max.Tension (N/100mm) ≥
    600
    Elongation at Break (％) ≥
    Elongation at Break (％) ≥
    25
    Tearing Strength (N) ≥
    Tearing Strength (N) ≥
    100
    Compression
    Maximum Strength at Compression Rate of 20％≥
    150
    Performance After Full Compression
    No Cracks
    Flexibility at Low Temperature
    - 10℃ No Cracks





    Heat Aging (80℃，168h)
    Tension Retention at 10% Elongation
    80
    Max.Tension Retention(％)
    90
    Retention Rate of Elongation at Break (％) ≥
    70
    Max.Strength Retention Rate at Compression Rate of 20%,≥
    90
    Performance After Full Compression
    No Cracks
    Flexibility at Low Temperature
    No Cracks
    Longitudinal Flow Capacity (Lateral Pressure 150 KPa)
    10
    Product features
    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller
    Main Features
    (1)Waterproofing and drainage : from a channel,which water and gas can go through;
    (2)Sound insulation and vibration isolation;
    (3)Chemincal resistance,resist to plants' root;
    (4)Easy to construction;
    (5)Long life time.
    Application Scenarios
    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller
    Application
    1. Greening Project
    The garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc
    2. Municipal Engineering
    Airport, road embankment, subway, tunnel, landfill, etc
    3. Construction
    The upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage control and heat insulation layer, etc
    4. Water Conservancy Project
    The reservoir seepage water, reservoir, lake water seepage control, etc
    5. Traffic Engineering
    Highway, railway basement, roadbed, dam and slope protection layer, etc
    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller
    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller
    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller
    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller
    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller
    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller
    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller
    Waterproof Storage Drainage Isolation Dimple Drainage Board Effective Root Controller
    FAQ
    1. who are we?
    We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid
    East(10.00%). There are total about 11-50 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    bentonite mat,swellable mat,geocell,geomembrane,geotextile

    4. why should you buy from us not from other suppliers?
    Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
    geotextile, GCL(Geosynthetic clay liners) and geotechnical materials. Our products have been exported to many countries, and are

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
    Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
    Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
    Language Spoken:English,Chinese,Spanish
