High Tensile Strength Geosynthetic Clay Liner GCL for Artificial Lake Leakage Control

Ask Lasest Price
Brand Name :	TAIAN HONGYUAN
Model Number :	GCL-3
Supply Ability :	20000 Square Meter/Square Meters per Day
Price :	$2.79/square meters 1000-9999 square meters

Add to Cart

Product Details
Company Profile

High Tensile Strength Geosynthetic Clay Liner GCL for Artificial Lake Leakage Control

Products Description

GCL

Geosynthetic clay liner (GCL) is composed of high dilatability of sodium base bentonite filling between the special composite geotextile and nonwoven fabric. It made by the method of acupuncture or suture composite impervious material. Use acupuncture into GCL can form many small fiber space, make the bentonite particles can't flow in one direction, when under the influence of water within the mat forming uniform density of colloidal waterproof layer, prevent the leakage of water.

Projects/ Technical data	GCL-NP Technical Indicators
Weight per unit area(g/m2)	more than 4000gsm and no less than specified value
Bentonie swell index(ml/2g)	≥24
Ethylene blue absorption(g/100g)	≥30
Tensile strength (N/100mm)	≥600
Racking strength(N/100mm)	≥40
Elongation at max load(%)	≥10
Permeability(m/s)	≤5.0x110^(-11)
Anti-static water pressure	0.4Mpa,1h,not seepage
Filtration loss (ml)	≤18
Bentonite durability (ml/2g)	≥20

Product characters

1. Environment friendly
2. Permanent waterproof, excellent performance
3. Easy to construct
4. Strong Self-Restore Capacity

Application Scenarios

1. The landfill anti-seepage closed treatment engineering.
2. The waterscape engineering and artificial landscape engineering.
3. The underground tank seepage control engineering. 4. Channel, the canal seepage control engineering.
5. The reservoir seepage control engineering (pool).
6. The subway engineering.
7. The tunnel engineering.
8. The underground structure and waterproof engineering such as underground foundation.

U.S. landfill

The construction of a large-scale landfill on Long Island in the United States uses bentonite waterproof blankets with a total area of 37,000 square meters. So far, there has been no quality problem.

Australian basement waterproofing

In the construction of a large basement in an Australian community, bentonite waterproof blankets are used for waterproofing measures, a total of 11,000 square meters, and there have been no quality problems in the construction so far.

Indonesia Wetland Park

Large-scale artificial river construction, waterproof measures using bentonite waterproof blankets totaling 46,000 square meters, construction has not had any quality problems.

Sri Lanka Water Park Project

Sri Lanka Water Park built an 800-square-meter artificial lake. The entire artificial lake uses bentonite waterproof blankets with a total of 13,000 square meters. It has been completed for many years, and there are no quality problems such as water leakage.

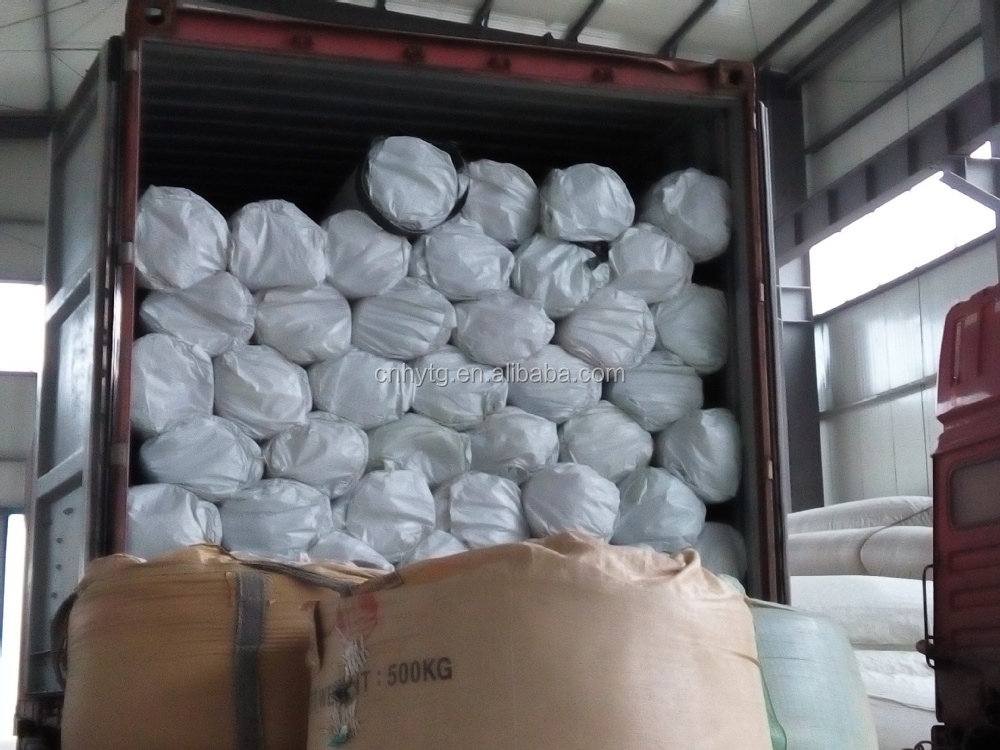

Packing & Delivery

FAQ

1. who are we? We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid East(10.00%). 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; Can provide third-party quality inspection reports； 3. How about the delivery time? General within 3-7 days after received the deposit. 4. why should you buy from us not from other suppliers? Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane, geotextile, GCL(Geosynthetic clay liners) and geotechnical materials. 5. Can you produce the product according to customers' requirements? Sure, we are professional manufacturer, OEM and ODM are both welcome. 6.Why geosynthetic clay liner can be waterproofing? Bentonite has good adhesion, swelling, colloidal dispersion, thixotropy and cation exchange properties. When bentonite is hydrated, water molecules are adsorbed along the surface of the Si-Al-Si structural unit, which increases the distance between adjacent structural units. After hydration, the surface cations of bentonite are in a hydrated state, and after absorbing H2O, it becomes saturated and becomes a gel, and its durability can reach 200 years. In the confined space, the continuous water absorption and expansion make the waterproof blanket layer itself dense and its volume increases, so that it has a waterproof function by forming a negative pressure inside. Its permeability can be reduced to 10~9cm/s, and it is almost watertight.
